A steel airplane hangar is a purpose-built enclosure engineered to shelter, maintain, and store fixed-wing aircraft and rotorcraft using a non-combustible primary frame. Pre-engineered steel dominates Canadian hangar construction because it delivers the wide, column-free clear spans that aircraft movement demands, along with the strength to carry large door systems and resist Canadian snow, wind, and seismic loads. This guide focuses on structural system selection, door integration, cost drivers, and the permitting process under the National Building Code of Canada (NBC).
- Clear-span steel frames are the industry standard for hangars because they eliminate interior columns that obstruct aircraft movement.
- Door type is often the single largest cost variable after the primary frame; it must be specified before the frame is engineered.
- The NBC requires site-specific engineering for snow, wind, and seismic loads; a generic kit is not a code-compliant substitute.
- Foundation design, site servicing, and mechanical systems are separate from the building package and must be budgeted independently.
- Lead times for engineered steel hangar packages typically run 10 to 20 weeks after engineering approval; plan procurement before breaking ground.
Definitions and scope
The term steel airplane hangar covers a wide range of structures, from a single-bay T-hangar holding one light sport aircraft to a multi-bay commercial maintenance, repair, and overhaul (MRO) facility spanning tens of thousands of square metres. In Canadian practice, hangars are classified by the local authority having jurisdiction (AHJ) according to occupancy type, fire rating, and proximity to fuel storage. The NBC governs structural requirements, while Transport Canada’s Aerodrome Standards and Recommended Practices (TP 312) addresses site and operational considerations at certified aerodromes.
Pre-engineered metal buildings (PEMB) dominate the hangar market because rigid-frame or tapered-column systems can achieve clear spans well beyond 30 metres without interior supports. Conventional structural steel is used when spans exceed practical PEMB limits or when the building must integrate with an existing facility. Accessory structures such as pilot lounges, parts rooms, and office mezzanines are commonly attached or integrated and are addressed in the options sections below.
Why this matters
Canada has more than 1,800 registered aerodromes, and private and corporate aviation infrastructure continues to expand alongside agricultural aviation, helicopter operations, and drone logistics. Choosing the wrong hangar structure creates problems that are expensive to correct: a building that is too narrow cannot accommodate a wingspan increase when an owner upgrades aircraft; a door system that is too light fails under Canadian wind loads; and a foundation designed for a lighter occupancy may require costly remediation when fire suppression or fuel systems are added later.
Steel is the material of choice for hangars for several interconnected reasons. It is non-combustible, which directly affects fire-separation requirements and insurance premiums. It can be engineered to precise span and eave-height combinations that match aircraft dimensions. It is factory-fabricated to tight tolerances, reducing on-site labour time. And it is durable enough to perform across the full range of Canadian climates, from the freeze-thaw cycles of Atlantic Canada to the heavy snow loads of the BC interior and the wind-driven cold of the Prairies.
Getting the specification right at the design stage is far less costly than modifying a completed structure. A buyer who understands the options, the cost drivers, and the permitting landscape is better positioned to make decisions that serve the aircraft fleet for decades. For a detailed look at how snow loads affect structural design across provinces, see the guide to steel building snow load in Canada.
Your options

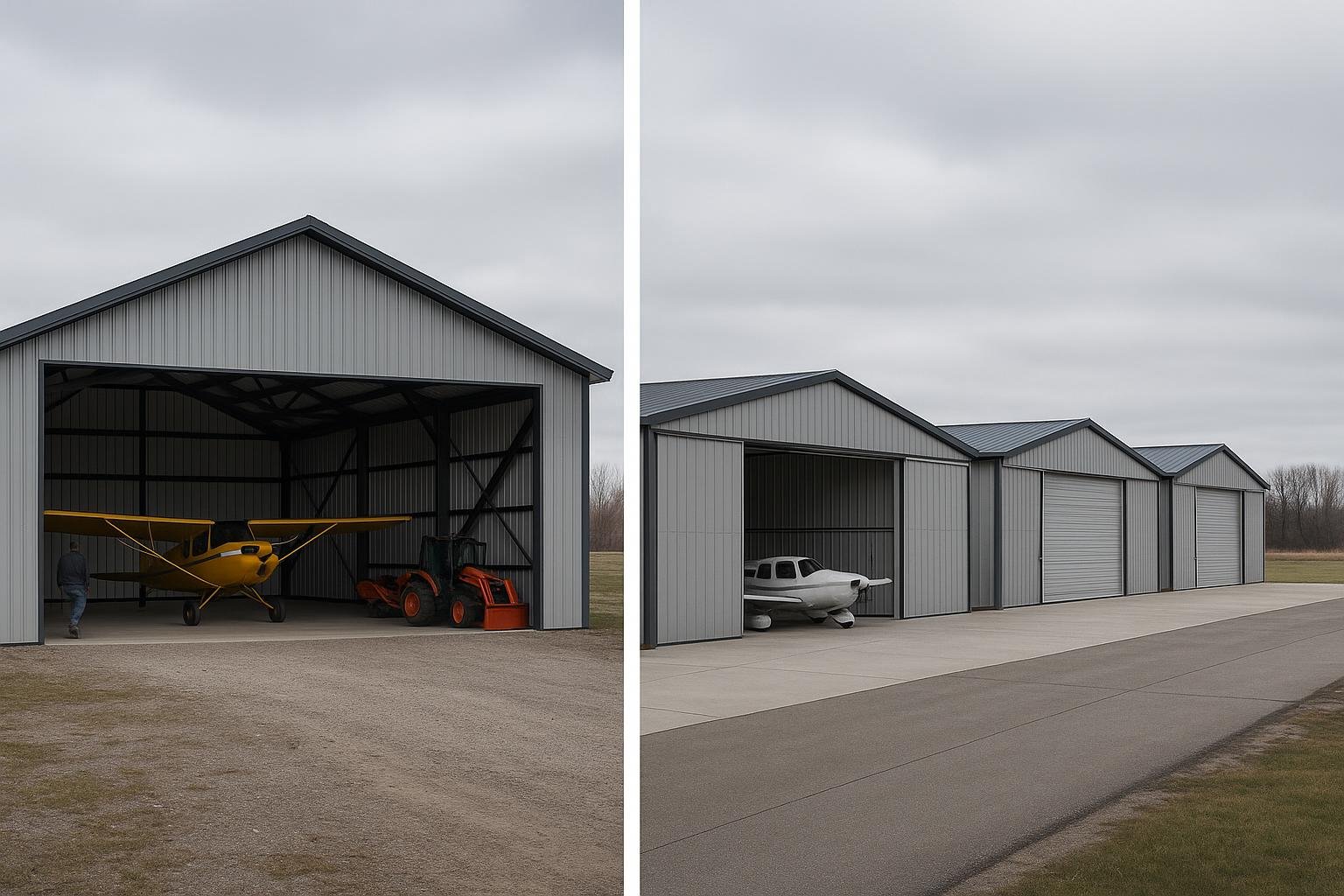

Pre-engineered clear-span rigid frame hangar
What it is: A factory-engineered primary steel frame using tapered or straight I-sections, delivered as a kit with secondary framing, cladding, and connection hardware. The rigid frame provides clear spans typically from 15 m to 90 m without interior columns.
How it works: The manufacturer engineers the frame to the site’s specific snow, wind, and seismic parameters under the NBC. Components are fabricated off-site and bolted together on a prepared foundation by an erection crew.
Best for: Single-owner private hangars, corporate flight departments, agricultural aviation operators, and small FBO (fixed-base operator) facilities where one to four aircraft are stored.
Limitations: Standard PEMB clear spans have practical upper limits; very large commercial MRO bays may require conventional structural steel or hybrid systems. Modifications after erection require engineering review.
Conventional structural steel hangar
What it is: A custom-designed steel structure using wide-flange sections, trusses, or space frames engineered from first principles by a structural engineer of record. No standard kit; every connection is project-specific.
How it works: A structural engineer designs the frame to meet the project’s span, load, and clearance requirements. Steel is fabricated by a certified shop and erected by a structural steel contractor.
Best for: Commercial MRO facilities, airline maintenance bases, military hangars, and any project requiring spans beyond practical PEMB limits or complex geometry such as curved roofs.
Limitations: Higher design and fabrication costs, longer lead times, and greater on-site labour compared to PEMB. Requires a licensed structural engineer throughout design and construction.
T-hangar unit
What it is: A row of interlocking T-shaped individual bays, each sized for one aircraft, sharing common walls and a continuous roof. The T-shape allows aircraft tails to nest between adjacent noses, reducing the total footprint per aircraft.
How it works: Multiple mirrored units are combined in a single steel structure. Each bay has its own door, typically a bi-fold or sliding panel, and may share a common electrical service.
Best for: Airport authorities, flying clubs, and developers leasing storage space to multiple light-aircraft owners. Maximises aircraft density per square metre of apron.
Limitations: Fixed bay width limits aircraft wingspan; not suitable for larger general aviation or turbine aircraft. Shared walls mean one tenant’s activities can affect neighbours.
Shade hangar or open-sided shelter
What it is: A steel-framed structure with a roof and partial or no side walls, providing weather protection from precipitation and UV without full enclosure.
How it works: The primary frame is engineered for roof loads only. Sides may be open or fitted with fabric or louvred panels. No large door system is required.
Best for: Warm-climate operations, temporary or seasonal storage, ultralight and experimental aircraft, and agricultural spray operations where quick access is prioritised over full enclosure.
Limitations: Does not protect against wind-driven precipitation, temperature extremes, or theft. May not satisfy insurance requirements for hull coverage. Not suitable for Canadian winters without additional enclosure.
Attached or lean-to hangar addition
What it is: A single-slope steel structure attached to an existing building, expanding hangar capacity without constructing a freestanding structure.
How it works: The lean-to frame bears against the existing building’s endwall or sidewall columns. The existing structure must be assessed by an engineer to confirm it can accept the additional loads.
Best for: Owners who need incremental capacity and already have a compliant primary structure. Lower cost per square metre than a new freestanding building when the host structure is adequate.
Limitations: Span is limited by the lean-to geometry. The host building’s condition and original engineering documentation must be available. Permits are required for the addition.
Options compared
| Structure type | Best for | Typical span range | Key considerations |
|---|---|---|---|
| PEMB clear-span rigid frame | Private, corporate, agricultural, small FBO | 15 m to ~90 m | Factory-engineered, faster delivery, code-compliant to NBC site loads |
| Conventional structural steel | Commercial MRO, airline, military | Unlimited by design | Higher cost and lead time; required for very large or complex spans |
| T-hangar unit | Multi-tenant light aircraft storage | Per-bay: 9 m to 15 m | High aircraft density; fixed bay width limits aircraft size |
| Shade or open-sided shelter | Warm climates, seasonal, ultralight | Any | Lowest cost; inadequate for Canadian winters without enclosure |
| Lean-to addition | Incremental capacity on existing site | Up to ~15 m single slope | Host structure must be assessed; limited span geometry |
For most Canadian private and corporate hangar projects, the PEMB clear-span rigid frame offers the best balance of cost, lead time, and structural performance. Conventional structural steel becomes necessary only when spans exceed PEMB practical limits or when project complexity demands fully custom geometry. T-hangars are the correct choice when the goal is maximising the number of aircraft stored per dollar of land and construction cost. Open-sided shelters are rarely appropriate for year-round Canadian operations without supplementary enclosure. Lean-to additions are a cost-effective incremental solution when the host building is sound and well-documented. For a broader comparison of PEMB and conventional approaches, see the guide to PEMB vs. conventional steel.
How to choose
Choose a PEMB clear-span rigid frame if you are storing one to four aircraft, your wingspan requirements fit within standard PEMB span tables, you need a code-compliant engineered structure delivered on a defined schedule, and you want factory quality control with bolted field assembly.
Choose conventional structural steel if your project requires spans beyond 90 m, involves complex roof geometry, must integrate with an existing structural steel facility, or is a commercial MRO or airline maintenance base where custom engineering is standard practice.
Choose a T-hangar configuration if you are an airport authority or developer leasing individual bays to multiple light-aircraft tenants and aircraft density per apron area is the primary design driver.
Choose a lean-to addition if you already own a compliant steel hangar, need incremental capacity, and have engineering documentation confirming the host structure can accept the additional loads.
Consider door type early. The door system must be specified before the primary frame is engineered because door header loads, track systems, and opening widths directly affect column spacing and eave height. Bi-fold hydraulic doors are common for large openings; sliding doors suit narrower openings or sites with limited apron depth. See the dedicated guide to hangar door types for a full comparison.
Verify local zoning and aerodrome requirements. Transport Canada’s TP 312 sets obstacle limitation surfaces around certified aerodromes that constrain building height. Municipal zoning may impose additional setbacks, height limits, or use restrictions. Confirm both before finalising dimensions.
Costs and timelines
No verified current price data has been supplied to this guide. The table below ranks cost drivers by relative impact; for project-specific budgeting, request a formal quote. For a broader discussion of aircraft hangar budgeting, see the guide to aircraft hangar cost in Canada.
| Cost driver | Why it matters | Relative impact |
|---|---|---|
| Primary frame span and eave height | Wider and taller frames require heavier steel sections; each additional metre of clear span adds disproportionately to frame weight | Highest |
| Door system | Large bi-fold hydraulic doors for openings of 20 m or more are a major line item; door type, width, height, and hardware all affect cost | Very high |
| Site-specific engineering loads | Higher ground snow loads, wind pressures, and seismic zones increase frame steel weight and connection complexity | High |
| Foundation | Concentrated column loads, aircraft tie-down anchors, and fuel system penetrations; soil conditions and frost depth vary widely across Canada | High |
| Insulation and cladding specification | Heated hangars require insulation meeting NBC energy requirements; insulated metal panels cost more than batt-and-liner systems but reduce air infiltration | Moderate |
| Mechanical and electrical systems | Radiant heating, fuel-vapour ventilation, aircraft power outlets, lighting, and fire suppression are separate from the building package | Moderate |
| Erection labour and site access | Regional labour rates, crane requirements, and remote-site mobilisation vary significantly across Canada | Moderate to low |
Typical PEMB hangar packages are delivered within 10 to 20 weeks of engineering approval. Conventional structural steel projects carry longer design and fabrication schedules. Foundation and site work can proceed in parallel with fabrication when scheduling allows, compressing the overall timeline.
Risks and common mistakes
Underestimating wingspan growth. Owners frequently size a hangar for their current aircraft and then acquire a larger one. Adding even 3 m to 5 m of clear span at the design stage costs a fraction of what a new building or major modification costs later. Design for the largest aircraft you are likely to own within a 10-year horizon.
Specifying the door opening too narrow or too short. Aircraft tail heights and wingspans must clear the door opening with a safe margin. Consult the aircraft manufacturer’s published dimensions and add clearance for ground equipment movement. A door that is marginally too small cannot be easily enlarged after the frame is erected.
Ignoring fire occupancy classification. The NBC classifies hangars by fire hazard based on fuel storage and aircraft size. The occupancy classification determines fire-separation distances, suppression system requirements, and construction type. Misclassifying the occupancy at the design stage can require expensive remediation before an occupancy permit is issued.
Omitting aircraft tie-down anchors from the slab design. Tie-down anchors must be cast into the concrete slab at engineered locations. Adding them after the slab is poured requires core drilling and epoxy anchoring, which is more expensive and may not achieve the same load rating.
Purchasing a non-engineered kit. Some suppliers offer generic steel building kits without site-specific engineering. These do not comply with the NBC’s requirement for buildings to be designed for the actual snow, wind, and seismic loads at the site. A building permit will not be issued for a non-engineered structure. For guidance on code compliance, see the guide to steel building code compliance in Canada.
Failing to confirm aerodrome obstacle surfaces. Transport Canada’s TP 312 defines imaginary surfaces around runways within which building heights are restricted. A hangar that penetrates an obstacle limitation surface may require a formal aeronautical assessment or may not receive approval at all. Confirm height restrictions with the aerodrome operator and Transport Canada before finalising eave height.
Underbudgeting for site servicing. Apron grading, drainage, electrical service, fuel system infrastructure, and access roads are not included in a building package. These costs can equal or exceed the building package cost on undeveloped sites.
How the process works
- Define requirements. Establish the aircraft type or types, wingspan, tail height, number of aircraft, door type preference, heated or unheated, and any ancillary spaces such as offices, parts rooms, or pilot lounges. Confirm the aerodrome’s obstacle limitation surfaces and any municipal zoning constraints.
- Request and review quotes. Provide your site location, building dimensions, door opening requirements, and load criteria to your steel building supplier. Compare quotes on the basis of engineering scope, included components, and delivery schedule, not only unit price.
- Engineering and permit drawings. The supplier’s engineering team produces stamped drawings for the primary frame, secondary framing, cladding, and connections, calculated for your site’s NBC loads. These drawings, along with foundation drawings from a local geotechnical and structural engineer, form the permit submission package.
- Permit application. Submit to the local AHJ. Hangars at certified aerodromes may also require Transport Canada review under TP 312. Allow time for plan review and any required revisions.
- Foundation construction. Once the permit is issued, the foundation is constructed. The steel building supplier provides anchor bolt layouts and column load data to the foundation engineer. See the guide to steel building foundation requirements for a detailed overview.

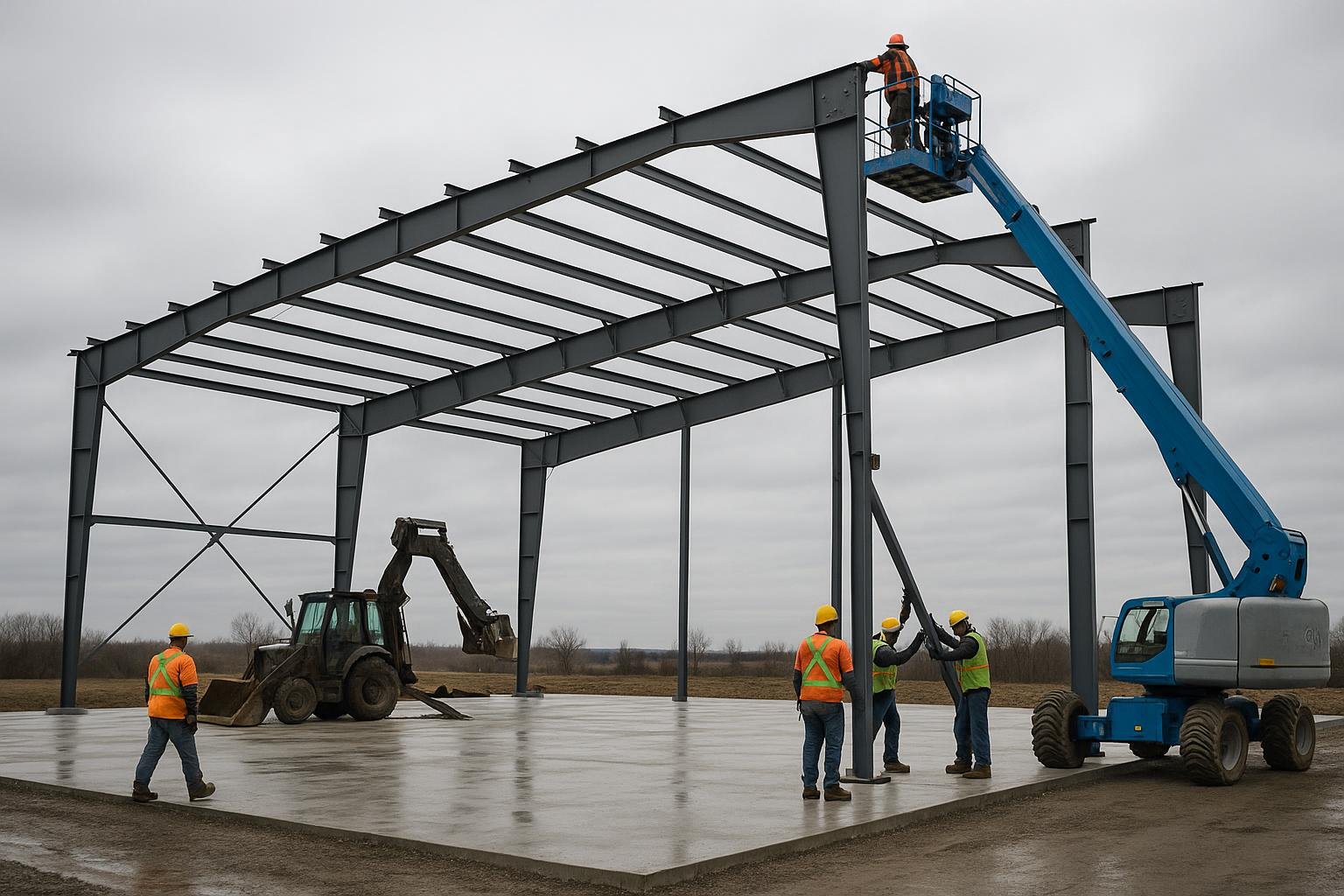

- Steel erection. The fabricated steel package is delivered to site and erected by a qualified crew. Cladding, doors, insulation, and trim follow the primary frame erection.
- Inspections and occupancy. The AHJ conducts inspections at required stages. Mechanical, electrical, and fire suppression systems are completed and inspected. An occupancy permit is issued when all requirements are satisfied.
Frequently asked questions
What clear span do I need for a typical single-engine piston aircraft?
Most single-engine piston aircraft have wingspans between 9 m and 12 m. A hangar with a 15 m clear span and a matching door opening provides adequate clearance for ground handling equipment alongside the aircraft. Always verify the specific aircraft’s published dimensions and add a minimum of 1 m to 1.5 m of clearance on each side for safe manoeuvring. If you anticipate upgrading to a larger aircraft, design for the larger wingspan from the outset.
Do I need a building permit for an airplane hangar in Canada?
Yes. All permanent hangar structures require a building permit from the local AHJ under the applicable provincial building code, which adopts or adapts the National Building Code of Canada. Hangars at certified aerodromes may also require review by Transport Canada under TP 312. Attempting to construct without permits exposes the owner to stop-work orders, fines, and potential demolition orders. Permit requirements apply regardless of whether the building is on airport authority land or private property adjacent to an aerodrome.
What is the difference between a PEMB hangar and a conventional steel hangar?
A PEMB (pre-engineered metal building) hangar uses a factory-designed and fabricated rigid frame system that is engineered to your site’s specific loads. It is faster to procure and typically less expensive for spans up to roughly 90 m. A conventional structural steel hangar is designed from first principles by a structural engineer for each project, which is necessary for very large spans, complex geometry, or integration with existing structural steel. Both must comply with the NBC and require stamped engineering drawings for a permit.
What door types are available for steel hangars?

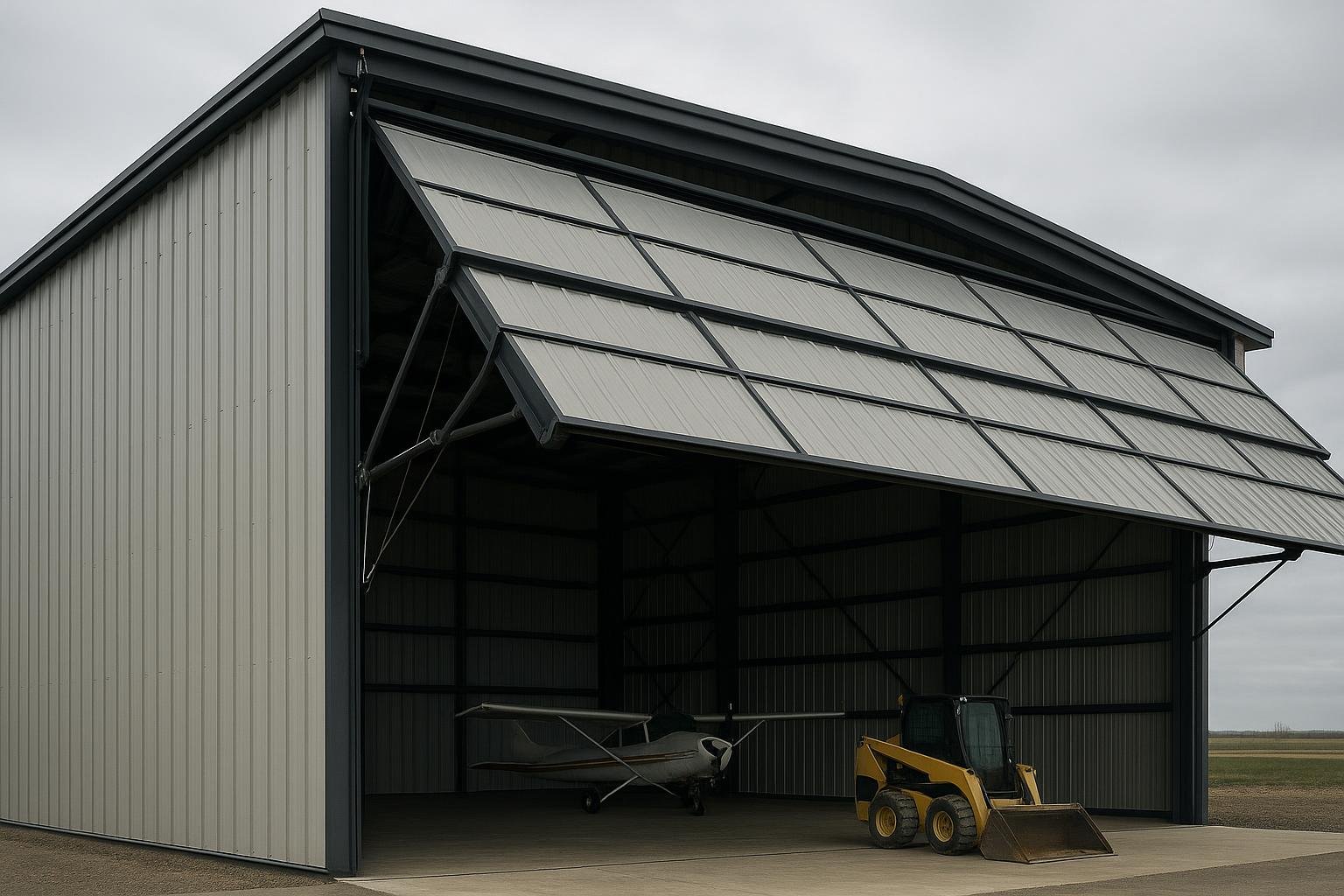

The main options are bi-fold hydraulic doors, bottom-rolling sliding doors, stacking panel doors, and fabric lift doors. Bi-fold hydraulic doors are the most common choice for large openings because they open quickly and do not require apron space in front of the building. Sliding doors suit narrower openings or sites where apron depth is limited. Stacking panel doors offer a cost-effective option for medium openings. The door system must be specified before the primary frame is engineered because it affects header loads and column spacing. The guide to hangar door types covers each option in detail.
How does Canadian climate affect hangar design?
Canadian climate imposes some of the most demanding structural loads in the world. Ground snow loads range from under 1.0 kPa in parts of southern Ontario to over 4.0 kPa in northern Quebec and the BC interior. Wind pressures are highest on coastal and Prairie sites. Seismic design is required in BC, parts of Quebec, and other zones. Frost depth affects foundation design across all provinces. A hangar engineered for one location cannot simply be relocated to another without re-engineering for the new site’s loads. The guide to steel building snow load in Canada provides province-by-province context.
Can I add a heated office or pilot lounge to my hangar?
Yes. Ancillary spaces such as offices, pilot lounges, washrooms, and parts rooms are commonly integrated into hangar designs as endwall additions or interior mezzanines. These spaces are typically separated from the hangar bay by a fire-rated assembly as required by the NBC occupancy classification. The ancillary space must be included in the engineering and permit drawings from the outset; adding it after the primary structure is erected requires a separate permit and may require structural modifications.
What foundation type is typical for a steel hangar?
Most hangars use a concrete slab-on-grade with perimeter grade beams or spread footings at column locations. The slab must be designed for aircraft wheel loads, which can be substantial for larger aircraft, as well as for ground vehicle traffic and any tie-down anchor loads. In areas with significant frost depth, footings must extend below the frost line. A geotechnical investigation is recommended for any hangar project to confirm soil bearing capacity and frost depth.
How long does it take to get a steel hangar built in Canada?
The total timeline from initial design to occupancy typically ranges from 6 to 18 months depending on project size, permit processing times in the local jurisdiction, and construction season. A PEMB package for a mid-size private hangar may be fabricated and delivered within 10 to 16 weeks of engineering approval. Permit processing times vary widely by municipality. Foundation and site work can often proceed in parallel with fabrication once the permit is issued, compressing the overall schedule.
Is steel a good choice for hangars in terms of fire safety?
Steel is non-combustible, which is a significant advantage in hangar applications where aviation fuel is present. Non-combustible construction can reduce required fire-separation distances and may positively affect insurance premiums compared to wood-frame construction. However, unprotected structural steel loses strength at elevated temperatures, so fire suppression systems, fire-rated separations between occupancies, and ventilation for fuel vapour are still required by the NBC depending on the hangar’s occupancy classification. Consult the NBC and your local AHJ for the specific requirements applicable to your project.
What sizes of airplane hangars can Titan Steel Buildings supply?
Titan Steel Buildings supplies pre-engineered and structural steel hangar packages across Canada, from single-bay private hangars to large multi-bay commercial facilities. Standard PEMB clear-span frames are available in a wide range of widths and eave heights; custom dimensions are engineered to project requirements. For an overview of available building sizes, see the steel building sizes page, and visit the aircraft hangars product page for hangar-specific information.
If you are planning a steel airplane hangar anywhere in Canada, Titan Steel Buildings can provide a project-specific quote that includes site-engineered drawings, code-compliant design, and a complete steel package. Contact the Titan team to discuss your aircraft, site, and timeline.
